Square Pier Steel Formwork

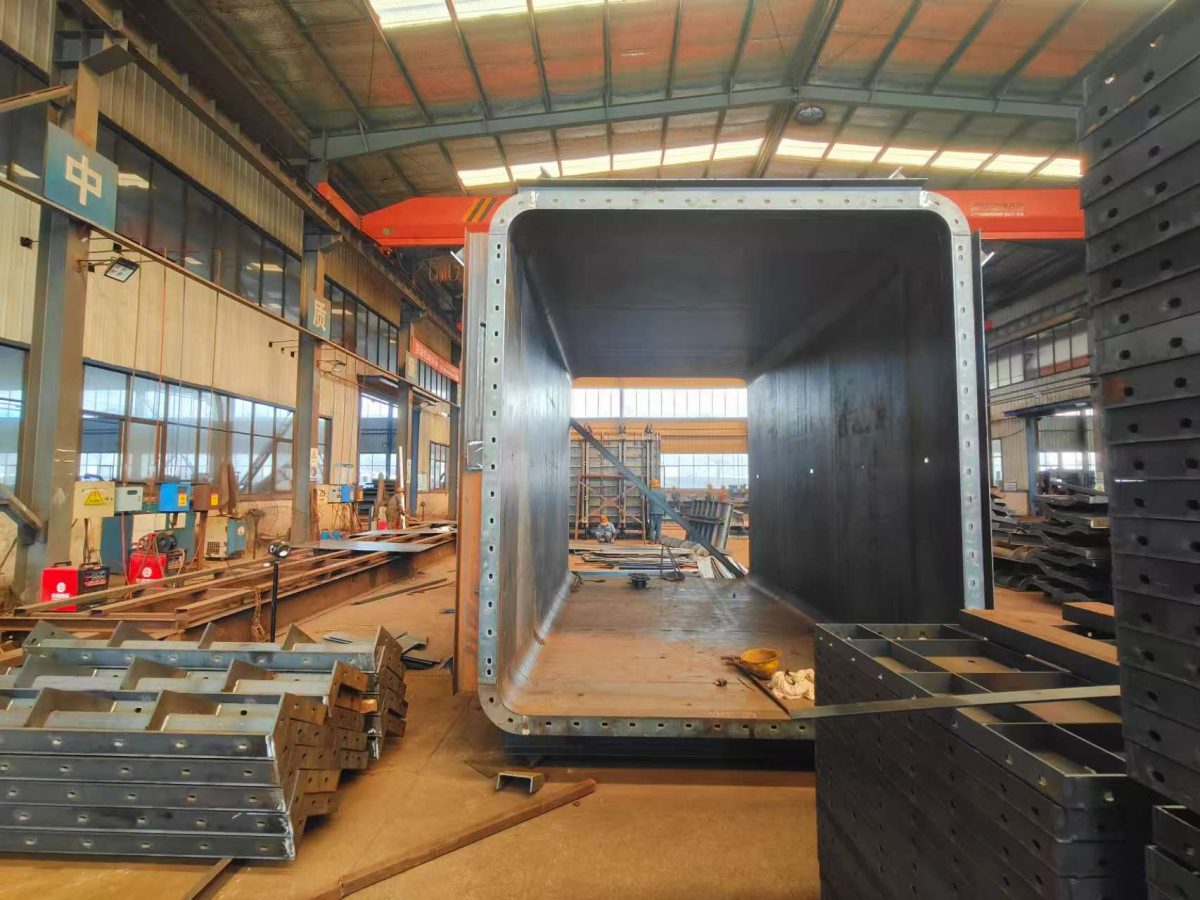

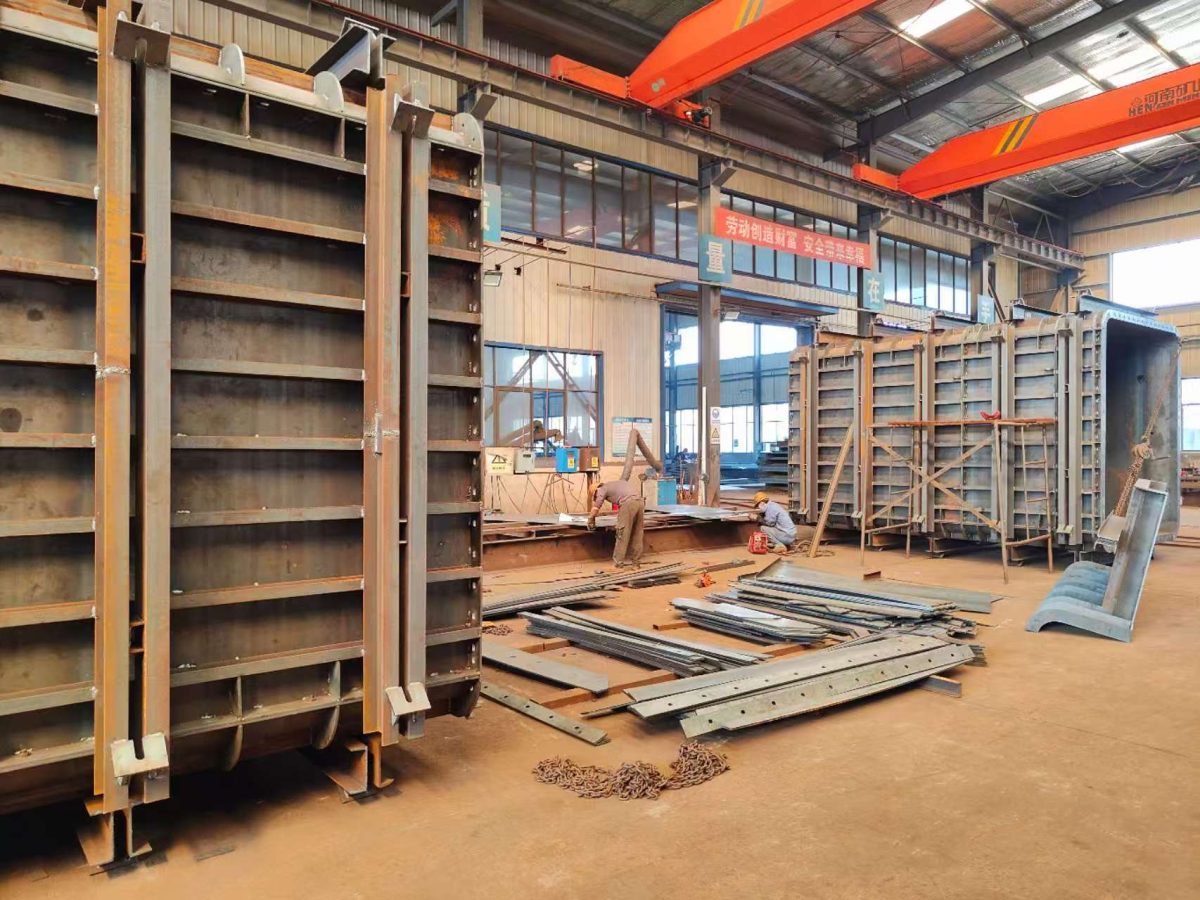

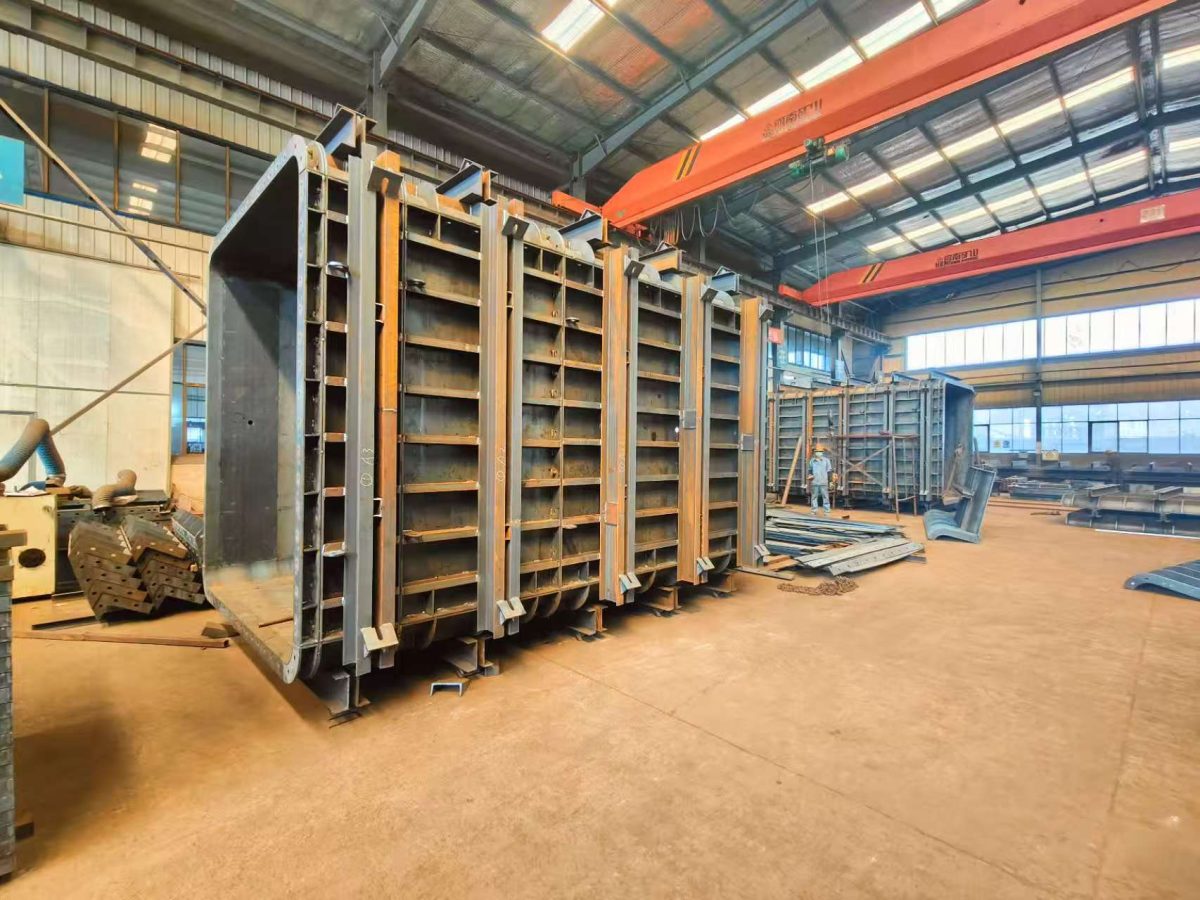

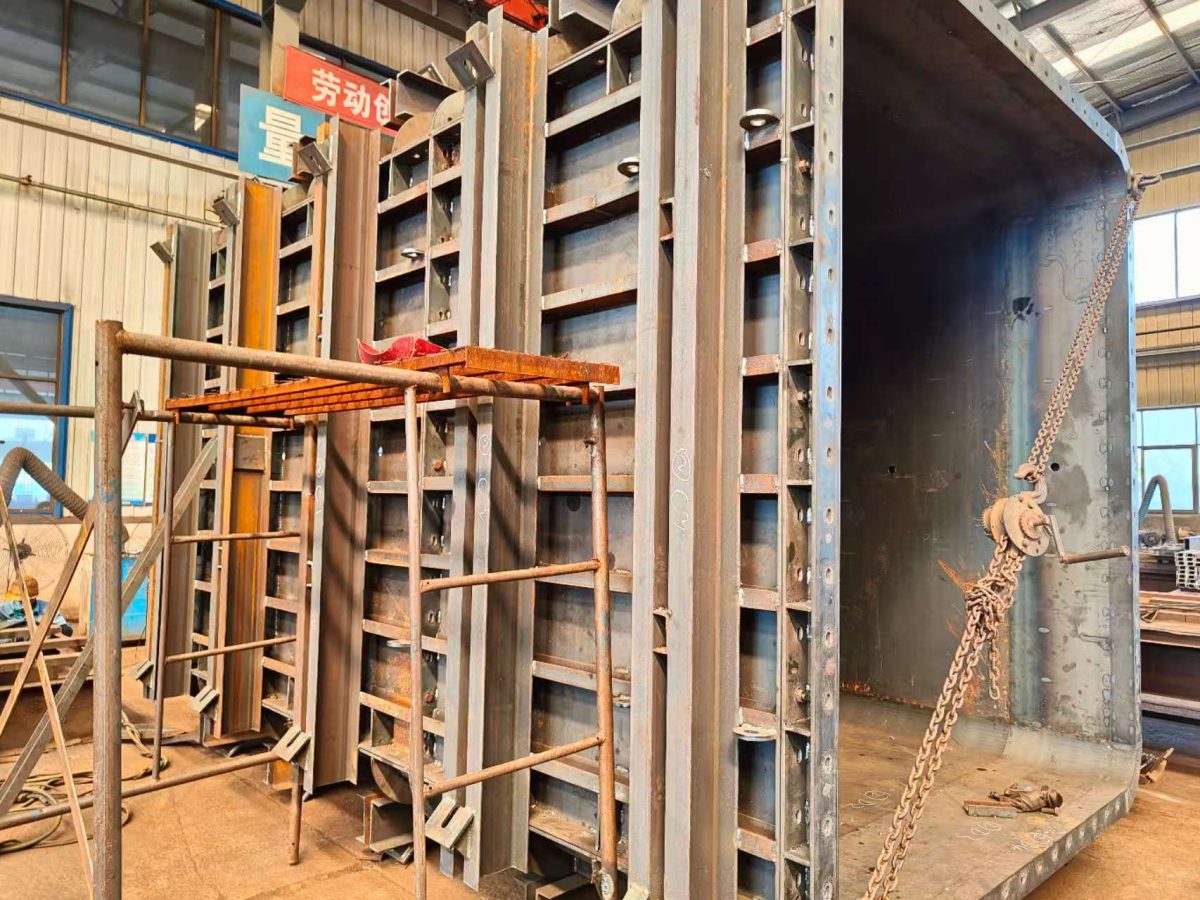

Product introduction The square pier formwork is a steel formwork system designed for the construction of square pier structures in bridge projects. It is suitable for bridge construction scenarios such as highways, railways, and waterways. It has the advantages of high strength, high precision, easy installation, and reusability, which can significantly improve the construction efficiency and quality of pier concrete pouring.

Product technical parameters Material: High-strength Q235B steel or 201 stainless steel. Supply method: ODM customized services can be provided according to the design requirements of project drawings. Formwork type: Supports a variety of cross-sectional sizes (such as 500mm×500mm to 2000mm×2000mm, etc.). Panel thickness: ≥6mm. Joint accessories: high-strength connectors such as bolts and tie rods. Surface treatment: Spray anti-rust paint to enhance the anti-rust ability of the formwork.

Product advantages

• High strength and durability:Made of high-quality steel, it has strong bearing capacity and can withstand the lateral pressure and construction load during concrete pouring. It can maintain stable performance and reduce loss after multiple turnovers.
• High-precision molding:Through precision machining technology, the template size error is controlled within ±2mm, ensuring the square pier column section size is accurate and the surface is flat, meeting the design specification requirements and reducing the later repair work.
• Modular and fast installation:Adopting modular design, each component can be quickly assembled and disassembled, and with standardized connectors, workers can complete the installation without complicated operations, greatly shortening the construction period and improving efficiency.
• Green environmental protection and economy:It can be reused more than 30 times, which reduces material waste and construction costs compared with traditional wooden templates; at the same time, it reduces construction waste and conforms to the concept of green construction.
• Safe and reliable:The template support system has been optimized by mechanical calculation, the structure is stable, and the deformation resistance is strong during the pouring process, which effectively ensures construction safety.

Applicable projects

• Highway bridges: square pier construction of urban roads, highways, etc.
• Railway bridges: construction of high-speed and conventional railway piers.
• Channel bridge: construction of underwater piers or land piers for bridges across rivers and seas.
